Original Launch X-431 X431 DIAGUN III Update Online

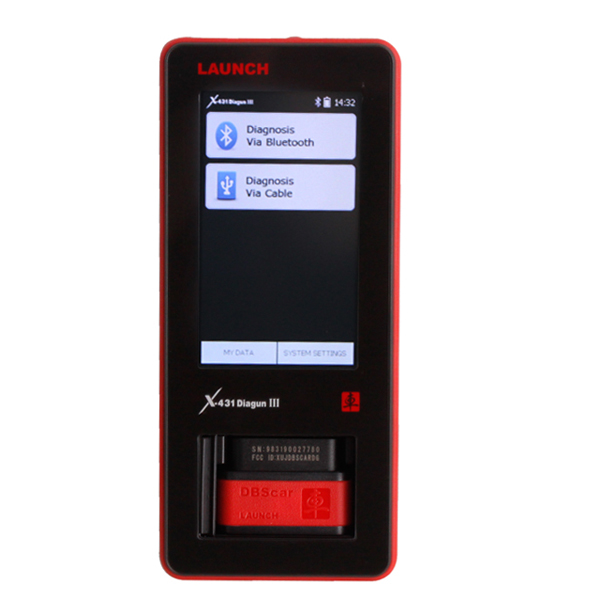

Launch X-431 Diagun III + Launch DBScar diagnostic adaptor integrated design, supports wired and Bluetooth wireless diagnosis. Color and touch inductive screen, easy operation.
Launch X431 Diagun III is a new professional vehicle diagnostic tool designed and developed by LAUNCH for repair technicians. It’s smart, easy to carry, fully functional and convenient to use, and it’s the standard equipment for garage technicians.
Launch X-431Diagun III + Launch Db-scar diagnostic adapter integrated design, supports wired and Bluetooth wireless diagnosis. Color and touch inductive screen, easy operation.
Demo,Smart diagnostic software,Smart OBDII
America: America Ford,Chrysler,GM, Acrus,INFINITI,Lexus.
Australia: Australia Ford,Holden
Brazil: Brazil GM
India: Indonesia Daihatsu,Indonesia Suzuki,Mahindra,MARUTI,TATA
Japan: Daihatsu,Honda,JPIsuzu,Mazda,Mitsubishi,Nissan,Subaru,Suzuki,Toyota
Europe: Audi,Benz,BMW,Citroen,Europe Ford,Fiat,Jaguar,Lancia,Landrover,Opel,Peugeot,Porsche,Renault,Romeo,Rover,Saab,Seat,Skoda,Transporter&V-Class,Volkswagen,Volvo
China: Brilliance,BYD,Changan,ChangCheng,Changhe,Chery,GEELY,Gonow,HaFei,JAC,Jiangling,SGMW,Tianjin,Xiamen Golden,XinKai,ZhongShun,Zhongxing,ZOTYE
Korea: Daewoo,Hyundai,Kia,Ssangyong
Malaysia: Perodua,Proton
Russia: GAZ,VAZ
S.Africa: S.Africa Opel
Thailand: Thailand Isuzu
Feature:
1. Compact main unit -Standard equipment for technicians
2. The only diagnostic tool which can work on two vehicles at the same time
3. Bluetooth technology, wireless communication. 100 m bluetooth communication,Cable communication support
4. Universal 16PIN connector
5. Fully inherited diagnostic functions from X-431. Capable of nearly all domestic vehicle makes and Asian, European, American vehicle makes.
6. Greatly improved program running speed
7. More convenient software update
8. 4.3 inch high luminance, high resolution color touch screen
9. 3800mAh Rechargeable battary
10. 1G memory card
11. Standard USB printer connector, external printer support
12. Full after sales service system, life time 1 to 1 service
Technical parameters:
| Operating System: | WIN CE 5.0 |
| CPU: | 400 MHz ARM9 |
| Memory Card: | 1G TF Card |
| Main Unit: | Universal Serial Bus/USB |
| Main Unit Power: | DC5V |
| X-431 Diagun Connector: | DC12V/24V |
| Printer Interface: | USB |
| Display Screen: | 194X86X33MM, 4.3-inch LCD with touch screen |
| Rechargeable Battery: | 3800 mAh |
| Bluetooth: theoretically | 100m, suggest 15-20m |
| Upgrading Interface: | USB |
Launch X-431 Diagun III Functions:
Long stand-By time: Can be used continuously 10 hours.
Unique Appearance: Rolling cover design, the DBScar connector is integrated.
Support print function: Support standard USB printer for printing diagnostic result.
Quick Update: Nearly 1,000 software update per year to ensure the functions.
Wireless diagnosis: Main unit can communicate with DBScar connector by Bluetooth(<100m).
Powerful diagnostic: Inherited with all diagnosis function of X-431 with wild software coverage, Asian, European and U.S.
How to Use Launch X431 Diagun III:
1.Connections
Bluetooth (wireless) / Cable (wired) connections
2.Installation Location
Bluetooth (wireless) Connection Procedure of X-431 Diagun III:
1.Insert the TF card into the slot;
2. Find out the vehicle’s DLC;
3.Plug the 16 PIN end of DBScar diagnostic connector into the vehicle’s DLC.
Printer available in DIAGUN:
LENNOVO: LJ2250/LJ2250N, P3900 Series
BROTHER: P2150, 5200/6200 Series and MW-120,MW-140BT,MW-260 model.
Others: Printers available that support PCL printing language.
Notes: Customers can store what they want to print in TF card as a form of picture. Then connect to PC and print it after testing.
Install the patch of DIAGUN printer before printing (downloaded on X431 website).
*For the battery performance, it is recommended to charge the battery fully before the first application.
Customer asked questions:
Q: To register an update on the launch website, i require the dealer code which is not stamped on the booklet enclosed with the product. I need this to log onto the launch website. Could you please send the dealer code for my product?
A: Dealer code is “86A”.
Q: Do i need to pay extra money after get the package to buy software? Or your diagun has the software itself?
A: Every diagun iii has the serial number, before we send it to you, we will provide the serial number to launch company for authorization. When you get it, you can register on official launch website and download the software. After you register, when new car modles software comes out, you can free to update it for one year.
Q: Can i use it to program keys? Reset the airbag? Change the mileage?
A: Diagun iii is a professional diagnostic tool. Usually we do not advice you to use this tool to program keys, although its hardware support this function, but it still needs you the basic skill for key programming and the Security code. This one cannot be used to reset the airbag or change the mileage.
Q: When i log in the website, it is not shown on my language, what is the problem?
A: Language is shown based on the IP. If you log in in china, then it will shown on Chinese, if you log in on England, then it will shown on English.
Q: Can i update it online no matter where i am?
A: Yes. This one can be used on any where of the world, including USA.
Q: How it will charge after one year for update? I live in USA, how can i use it?
A: Update online one year for free, after one year update cost 999usd/year. This one can open authorization for anywhere of the world, including USA.
